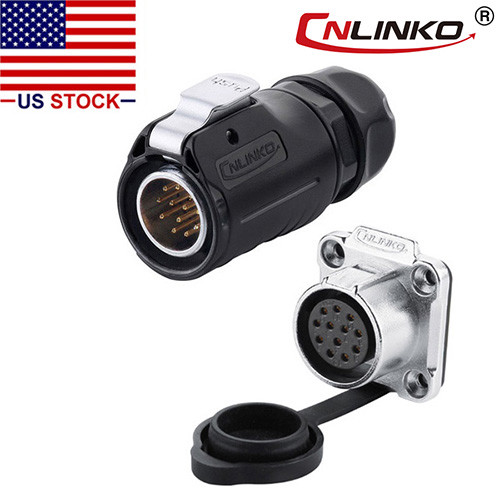

12 Pin Power Signal Connector Male Plug & Female Socket Outdoor Waterproof IP67
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Compatible Wire Gauge (AWG) | 26-24 AWG |
| Country/Region Of Manufacture | China |
| Certificate | UL, CE, RoHS |
| Minimum Operating Temperature (Actual) | -40°C |
| Maximum Operating Temperature (Actual) | 80°C |
| Minimum Operating Temperature (Nominal) | -40°C |
| Maximum Operating Temperature (Nominal) | 80°C |
| Current Type | AC/DC |
| Connecting Mode | Plug/Unplug |
| IP Rating | IP67 |
| Contact Material | Copper |
| Shell Size | M20 |
| Body Material | ABS & Zinc |
| Brand | CNLINKO |
| Termination Type | Solder |
We are the only authorized eBay retailer for "CNLINKO" brand connector products, with complete warranty. Selling Items Model Number: Plug: LP-20-C12PE-01-022Socket: LP-20-J12SX-03-401 Features: ● 12 cores in line with the diversity of industrial demand, signal and power compatible match.● Socket and internal components zinc alloy material, with a complete electromagnetic and radio frequency interference protection.● Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in current.● PBT material shell, stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.● Unique docking design, a solid line extends infinitely long● 4-hole mounting, solid flawless, thread type transposion installation, suitable for circular openings industrial installation.● 5A rms rated current● Protection Level: IP67 Specification: Cable specification0.15m㎡～0.2m㎡/26-24 AWGDiameter range Φ5.5mm～Φ7mmContact diameter × numberΦ1.0x12Rated Current (A)5AOperating voltage (AC.V.rms)400V Contact resistance<5mΩTemperature rise /Withstanding Voltage (AC.V) 1 minute1500VInsulation resistance＞500MΩProtection level IP67Durability≥500 timesWorking temperature-40℃～80℃Connecting modePlug/unplugAssembly wireSolderHousing, the insulating partsHigh-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needlesCopper alloy (gold-plated 4U) Waterproof circleSilica gelFlammability ratingUL94-V0 LP-20 Series Specification Sheet
